1Visual surface size：
Ø Door frame：48mm
Ø Door sash：60mm/100mm
2Profile width：
Ø Frame：155mm
Ø Sash：70mm
3Range of total glass thickness：25mm-44mm
4Insulation strip size：34mm
Typical Door type products U-value：1.6-2.4W/(·K) （Depending on the glass configuration, the insulation performance of the entire door varies depending on the glass configuration）
1One sash can support over 350KG, meeting the needs of large applications and larger opening space requirements；
2Dedicated stainless steel guide rail, smoother opening, higher load-bearing capacity, and better stability；
3Standardized processing technology, perfect balance between efficiency and quality；
4Excellent drainage channel design combined with super strong sealing system, providing superior performance in terms of water tightness, air tightness, sound insulation, etc；
Product Category | 1 level | 2 level | ||
Product Name | 155Series Lift-Slide Door | Aluminum Windows and Doors | Aluminum Doors |

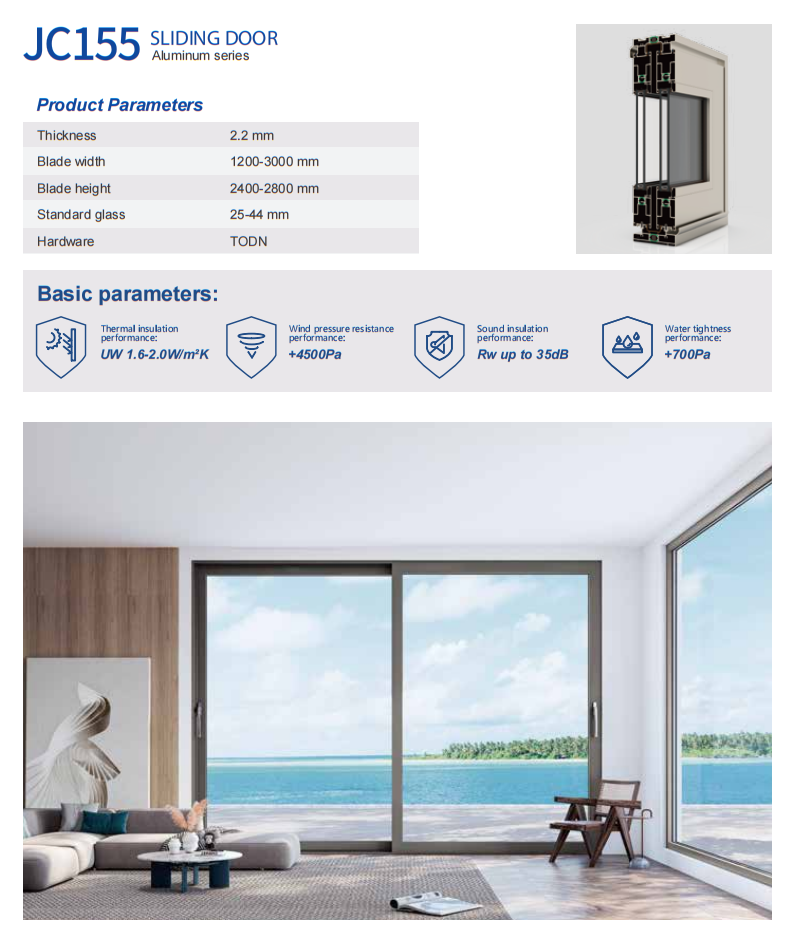

Technical Specifications
Thickness | 2.2mm | Door frame | Ø 48mm |
Blade width | 1200-3000mm | Door sash | Ø 60-100mm |
Blade height | 2400-2800 mm | Frame | 155mm |
Standard glass | 25-44mm | Sash | Ø 70mm |
Hardware | TODN | U-value | 1.6 -2.4W/(·K) |
Themal Insulation Performance(UW) | 1.6-2.0W/m²K | ||
Wind Pressure Resistance Performance | +4500Pa | ||
Acoustic Insulation Performance | Rw up to 35dB | ||
Water tightness Performance | +700Pa |
Packaging Material
PE Film | ||||
PVC Corner Protector |
